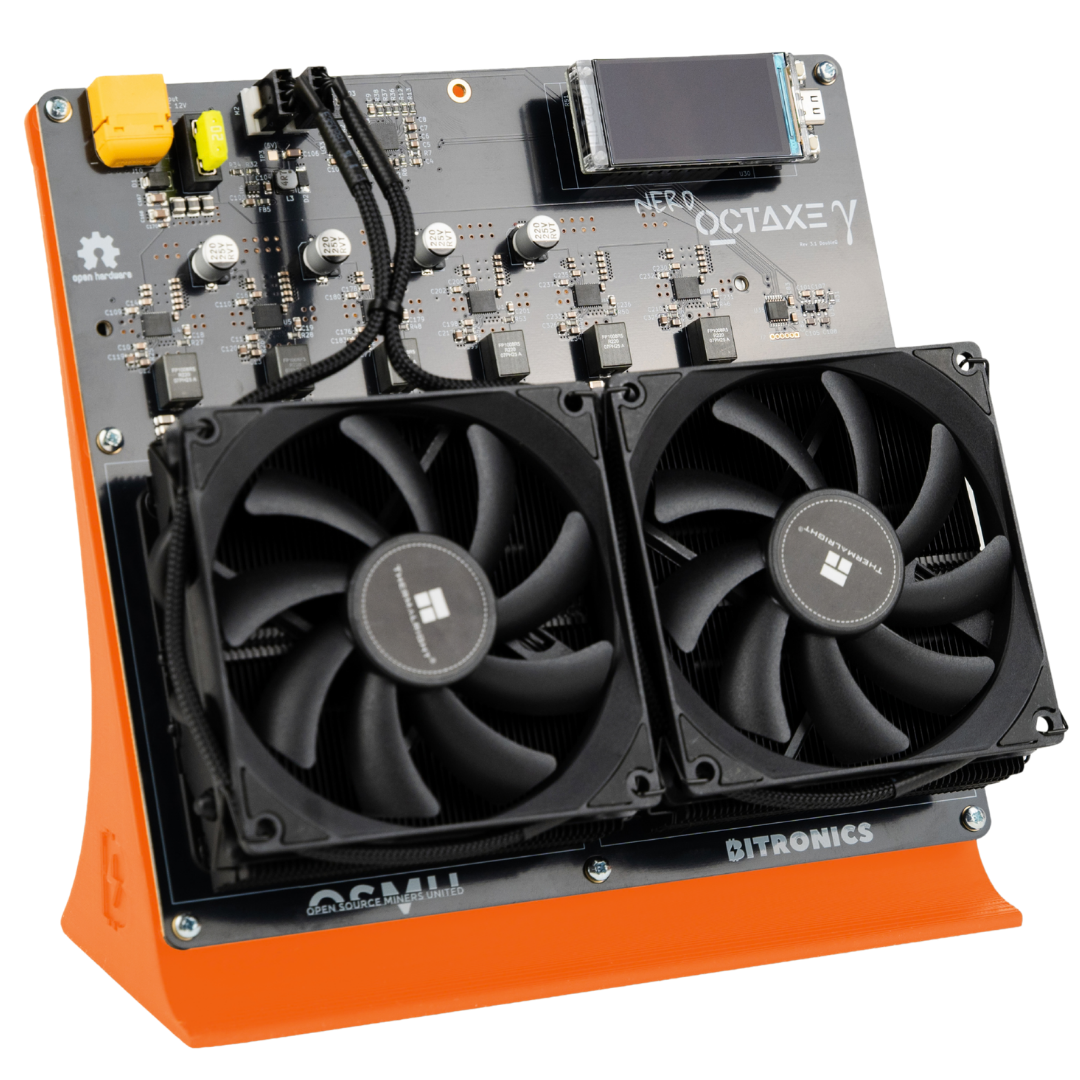

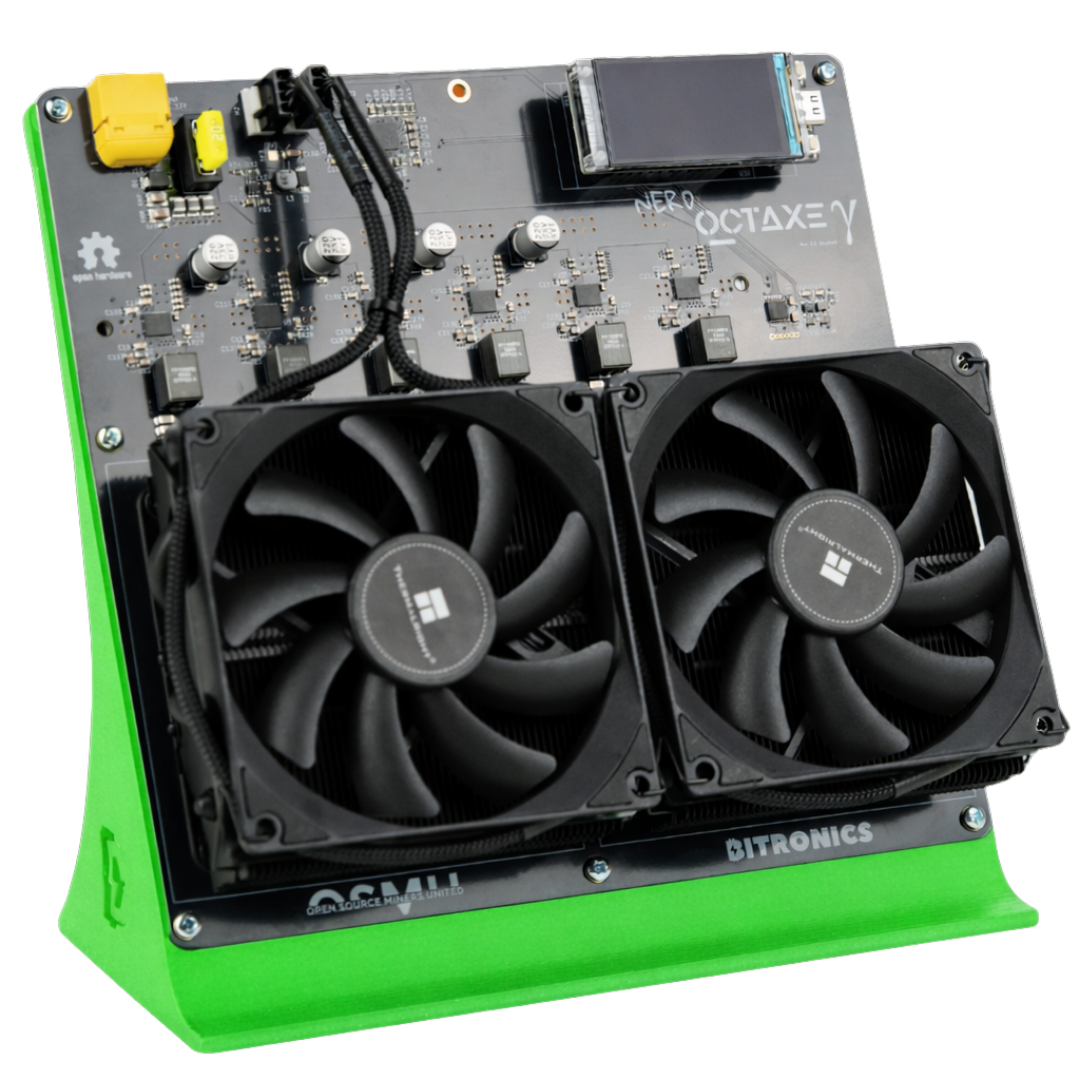

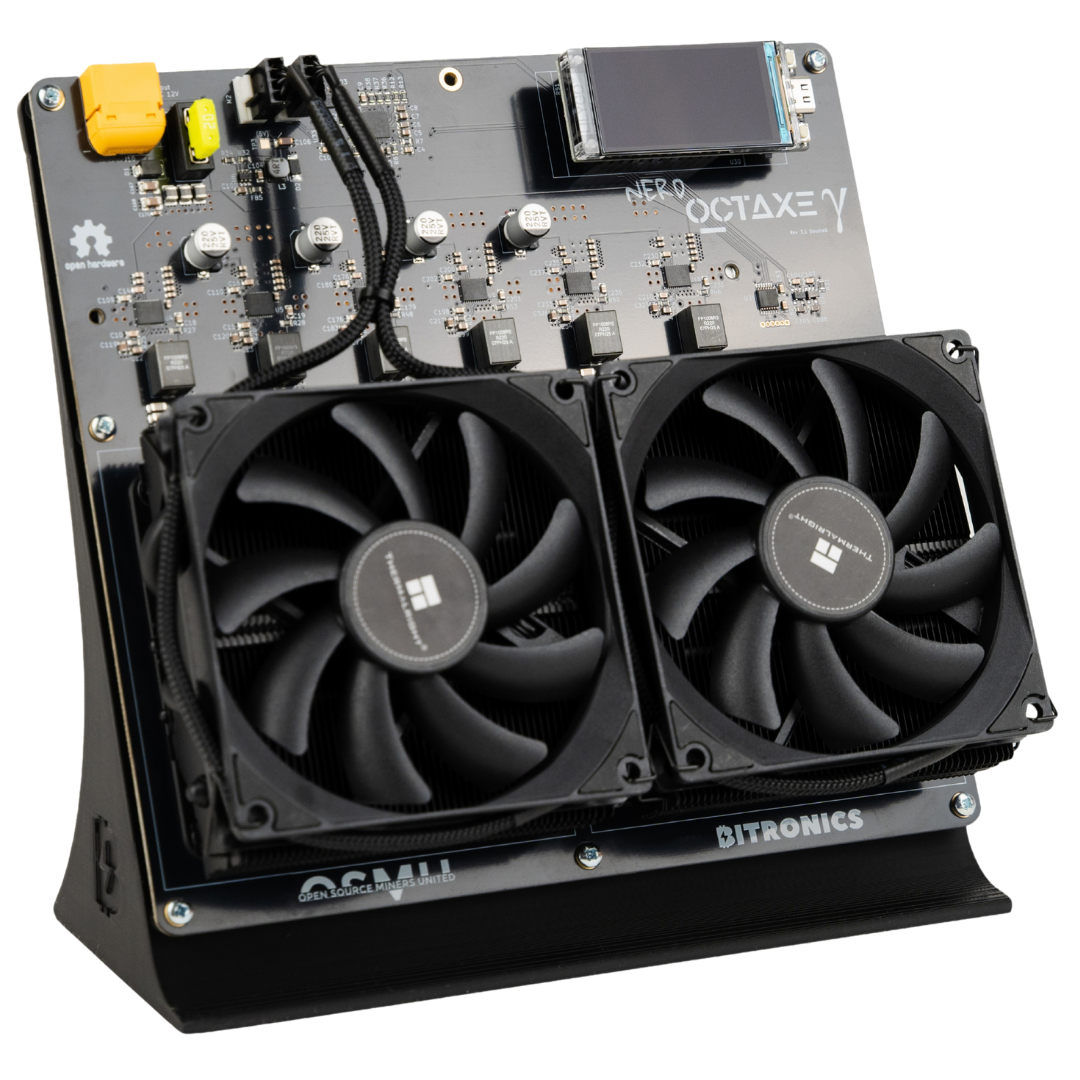

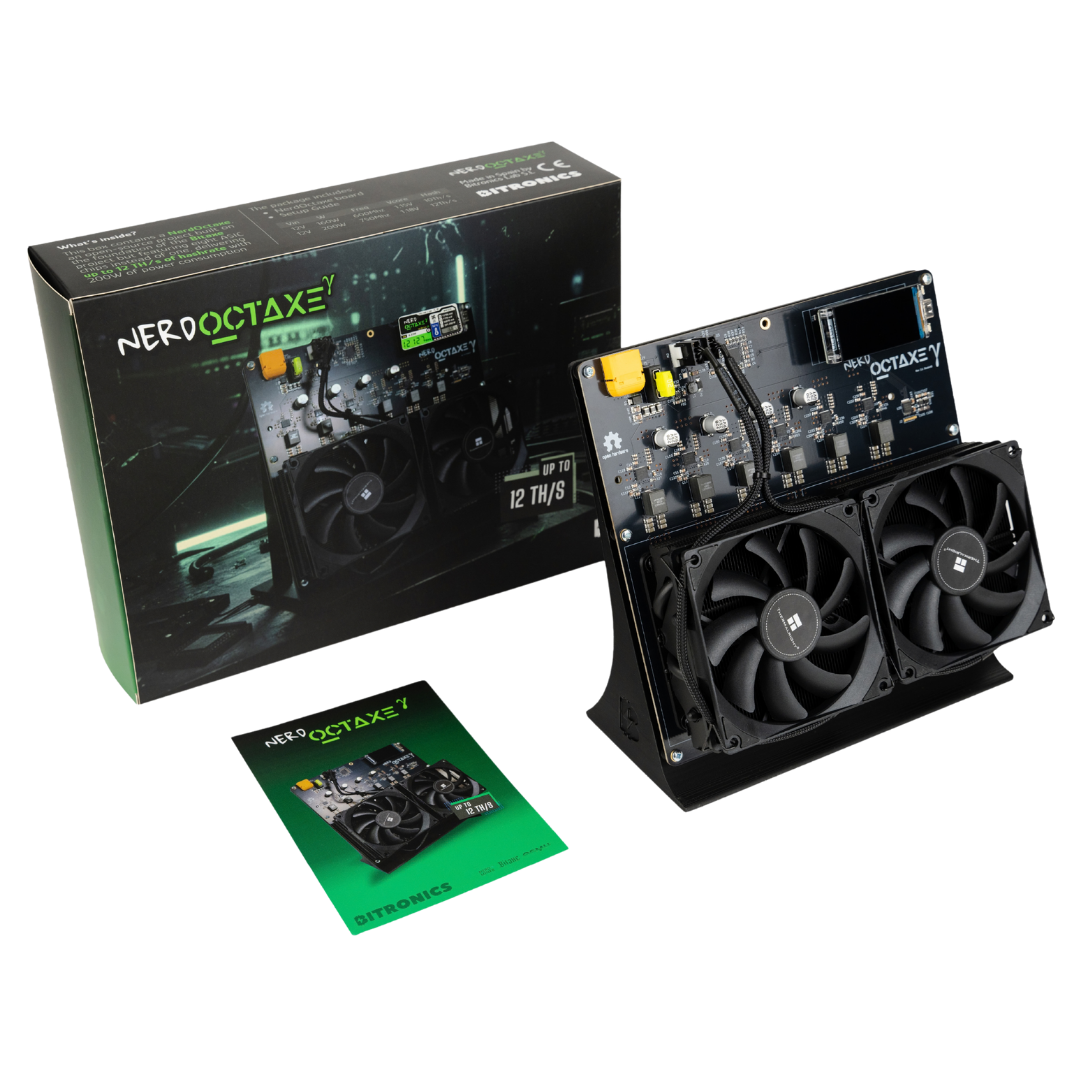

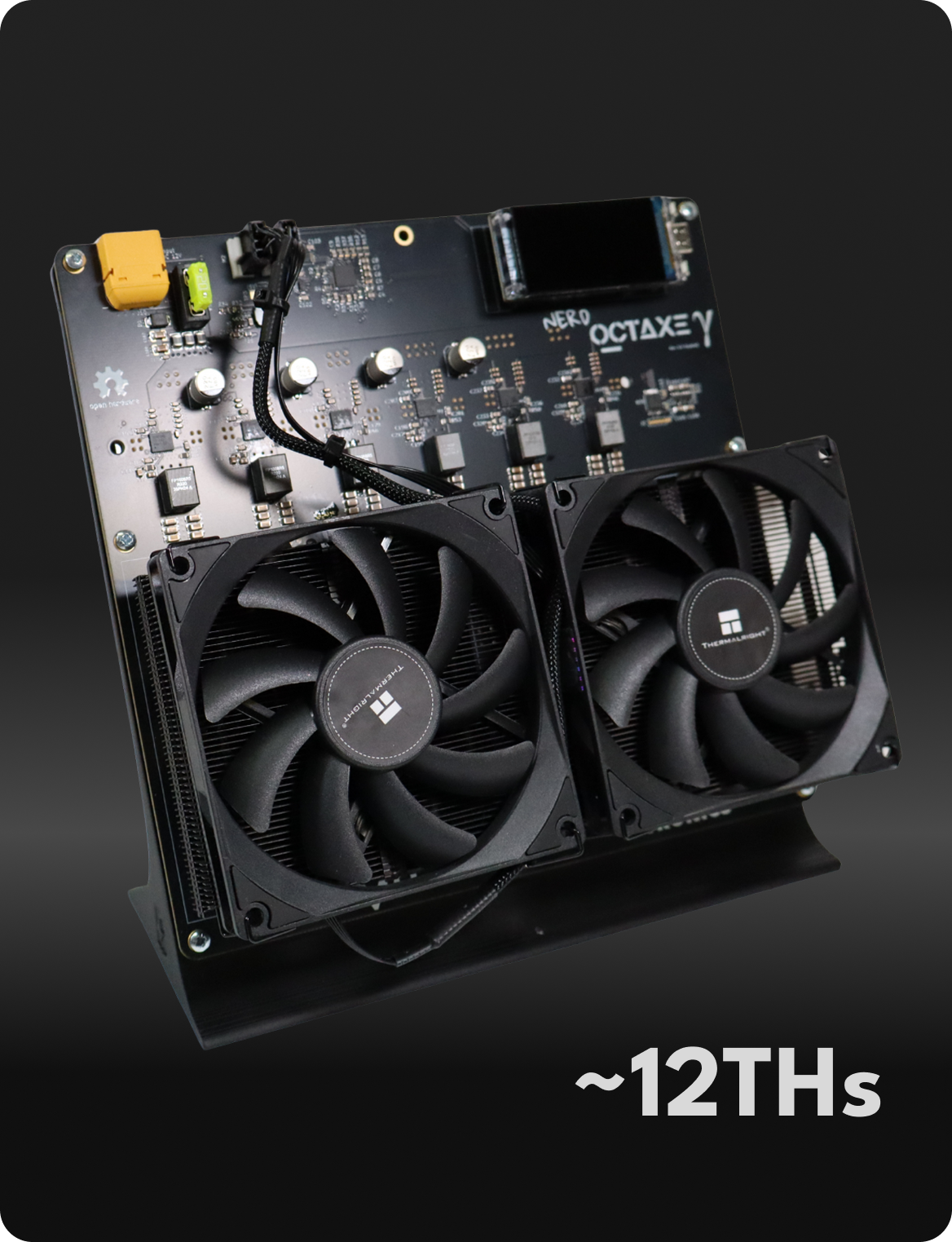

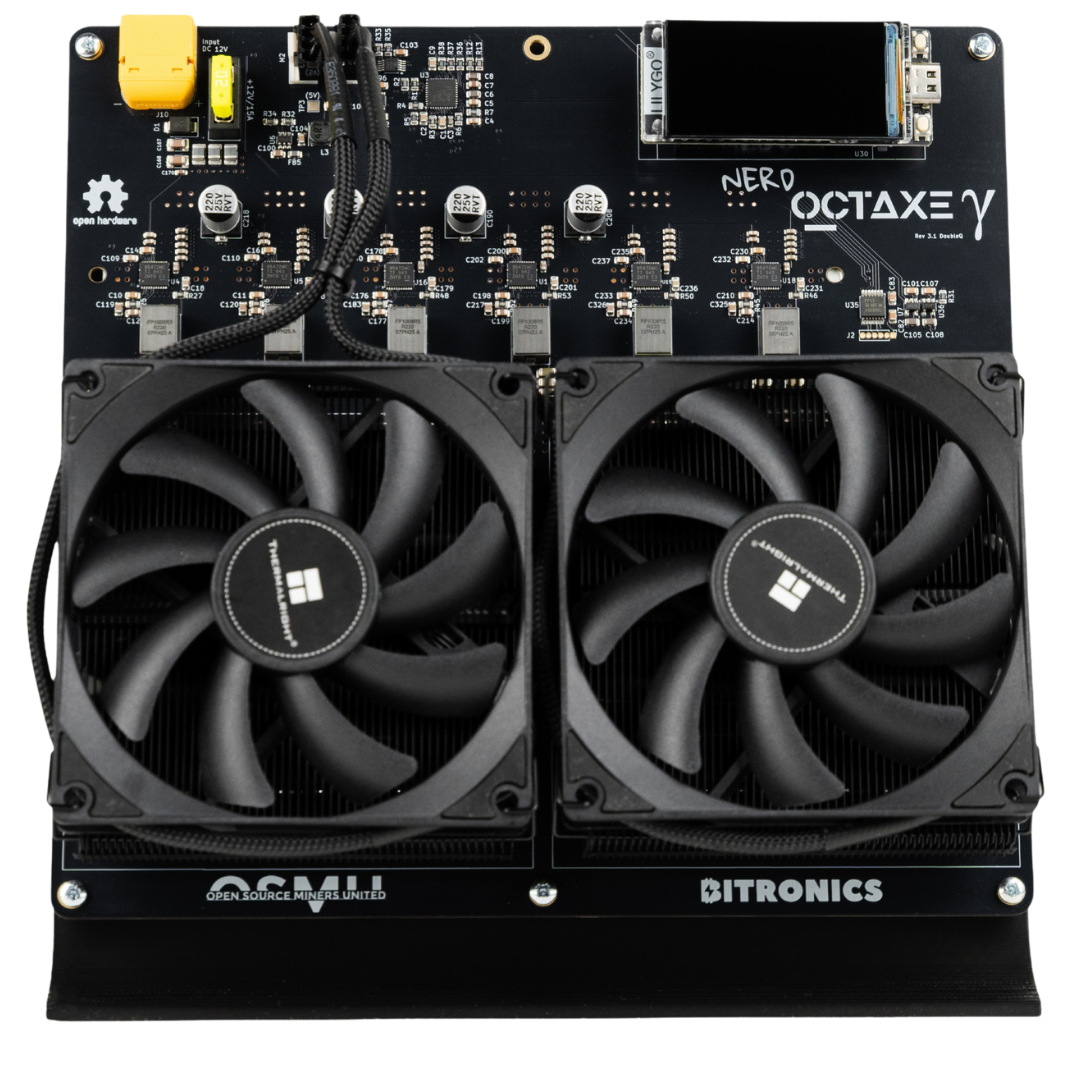

NerdOctaxe rev3.1 ~12TH/s

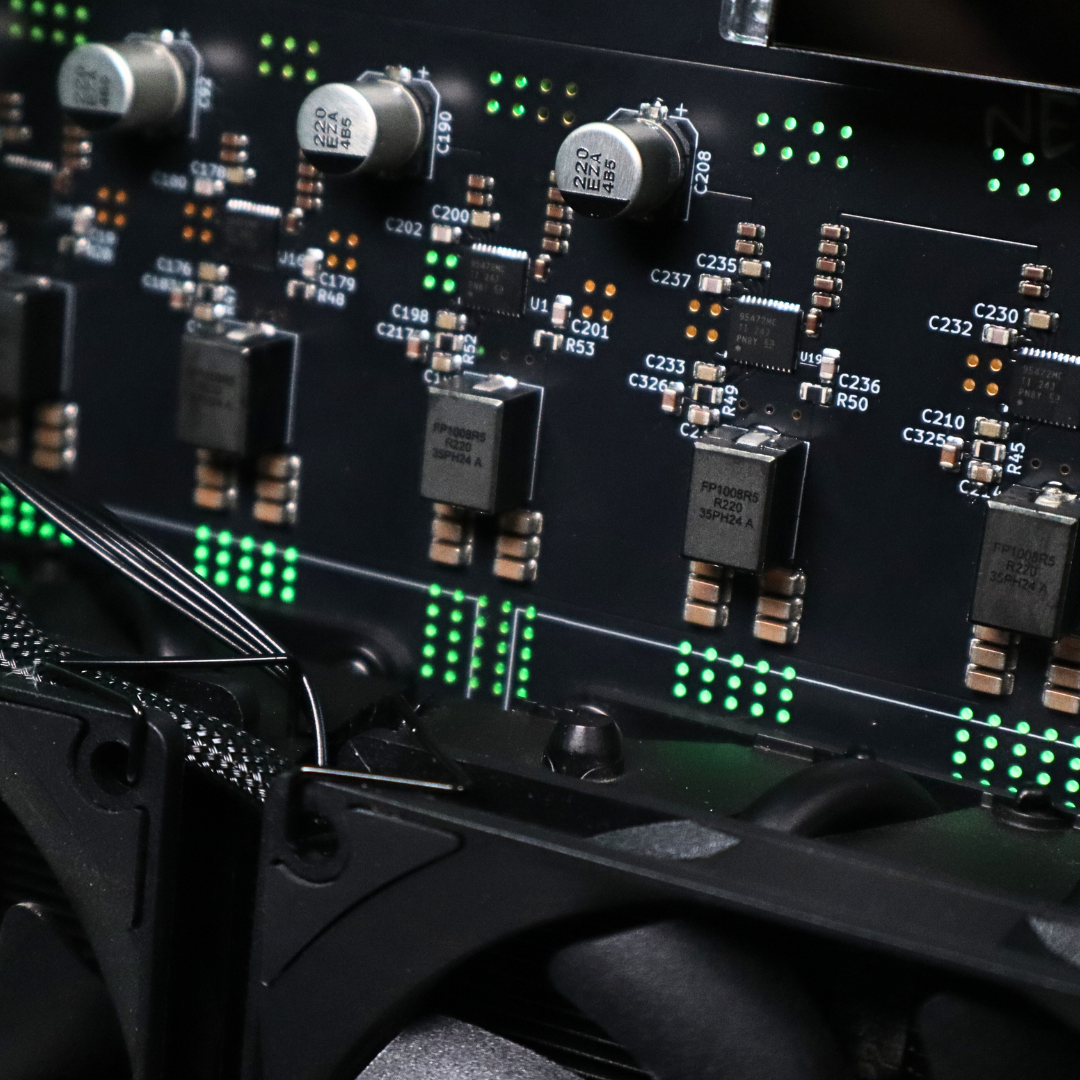

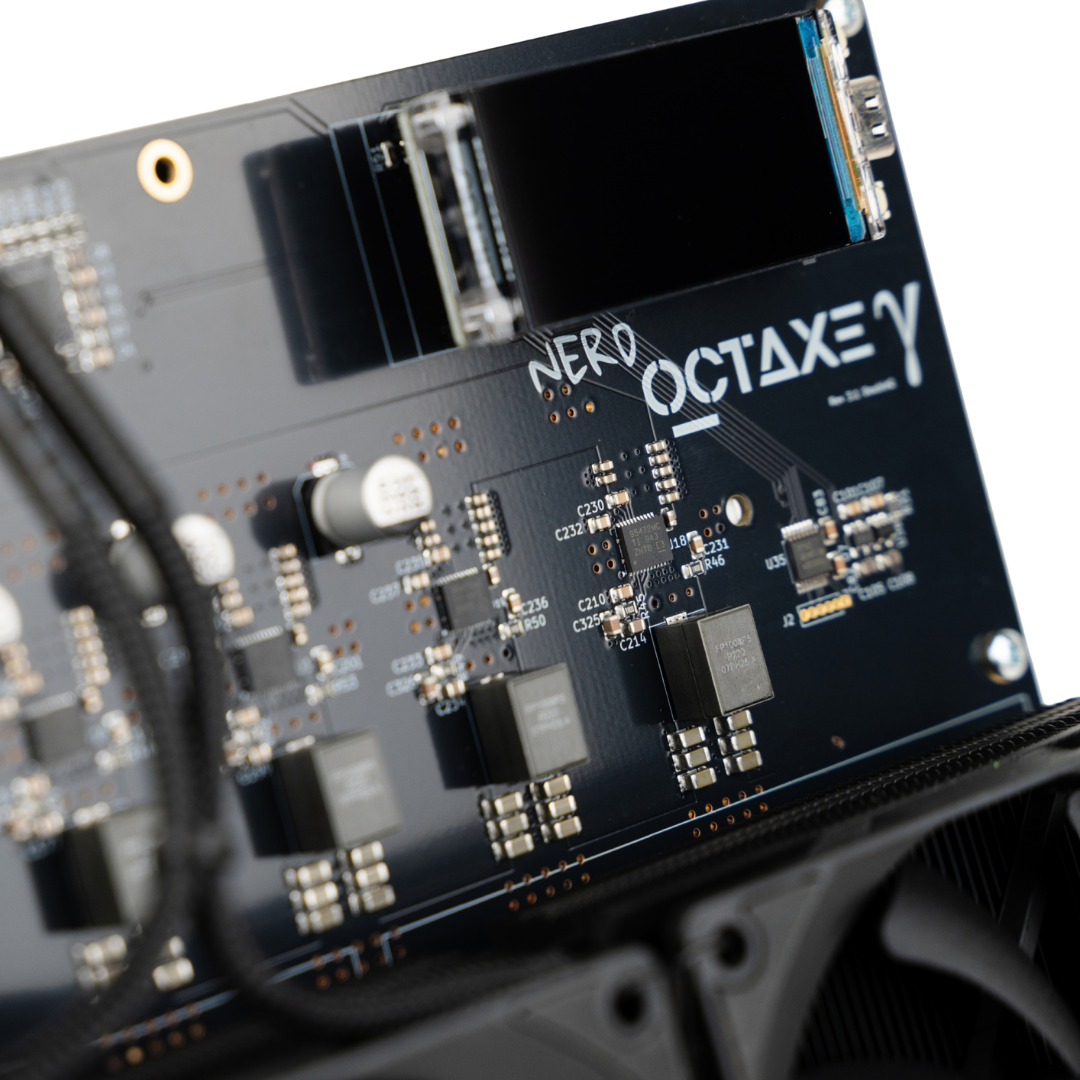

The NerdOctaxe is built on the foundation of the Bitaxe project but expands the architecture significantly with eight BM1370 ASIC chips, delivering up to12 TH/sof hashrate in its Revision 3.1. Thanks to the upgraded 6-phase VRM, the newTPS53667power controller, and an improved PCB layout, the NerdOctaxe achieves an efficiency of around 15.8 J/TH, with a typical power consumption of 160 W. This makes the Rev 3.1 one of the most powerful and thermally stable open-source miners available today.

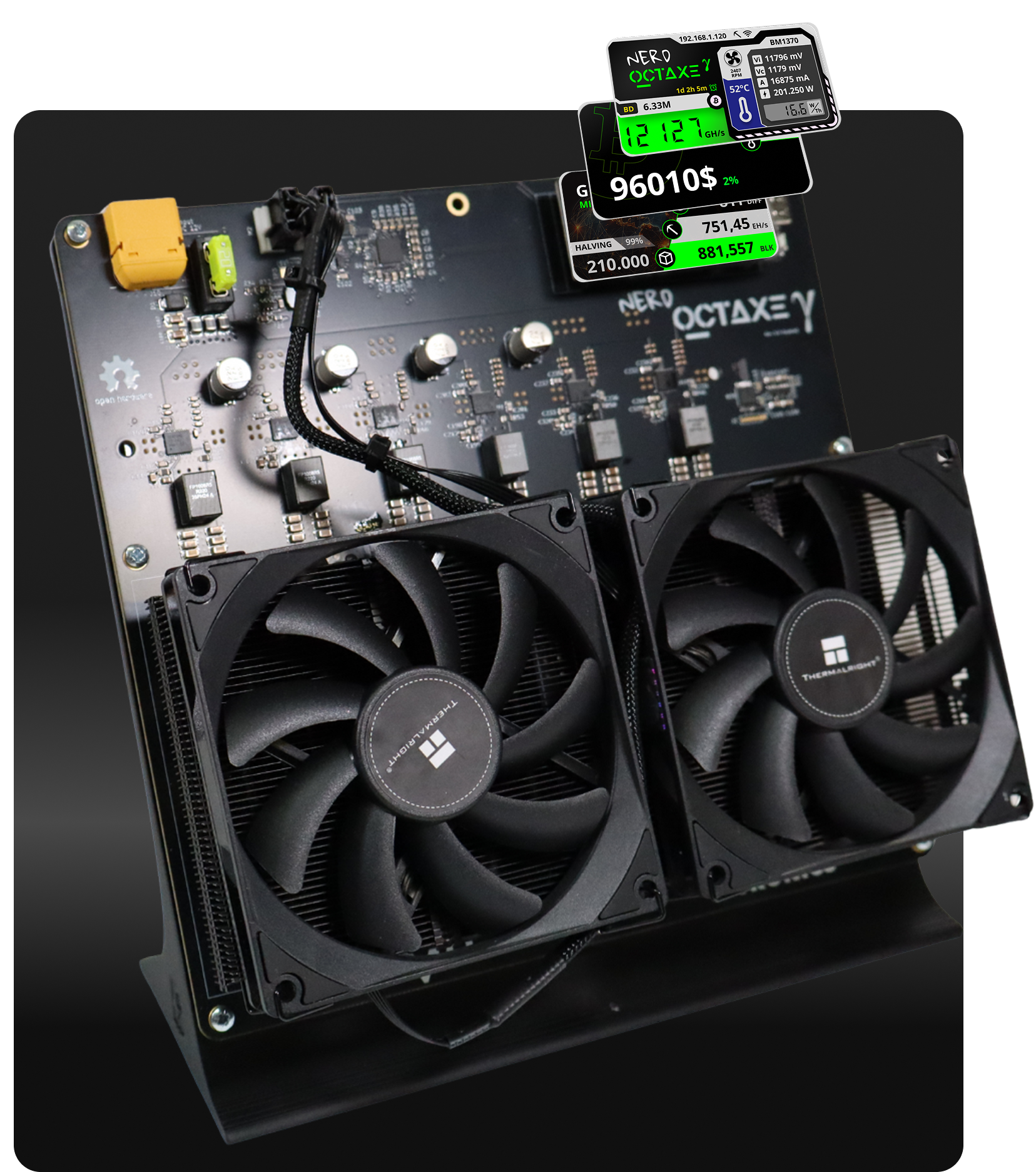

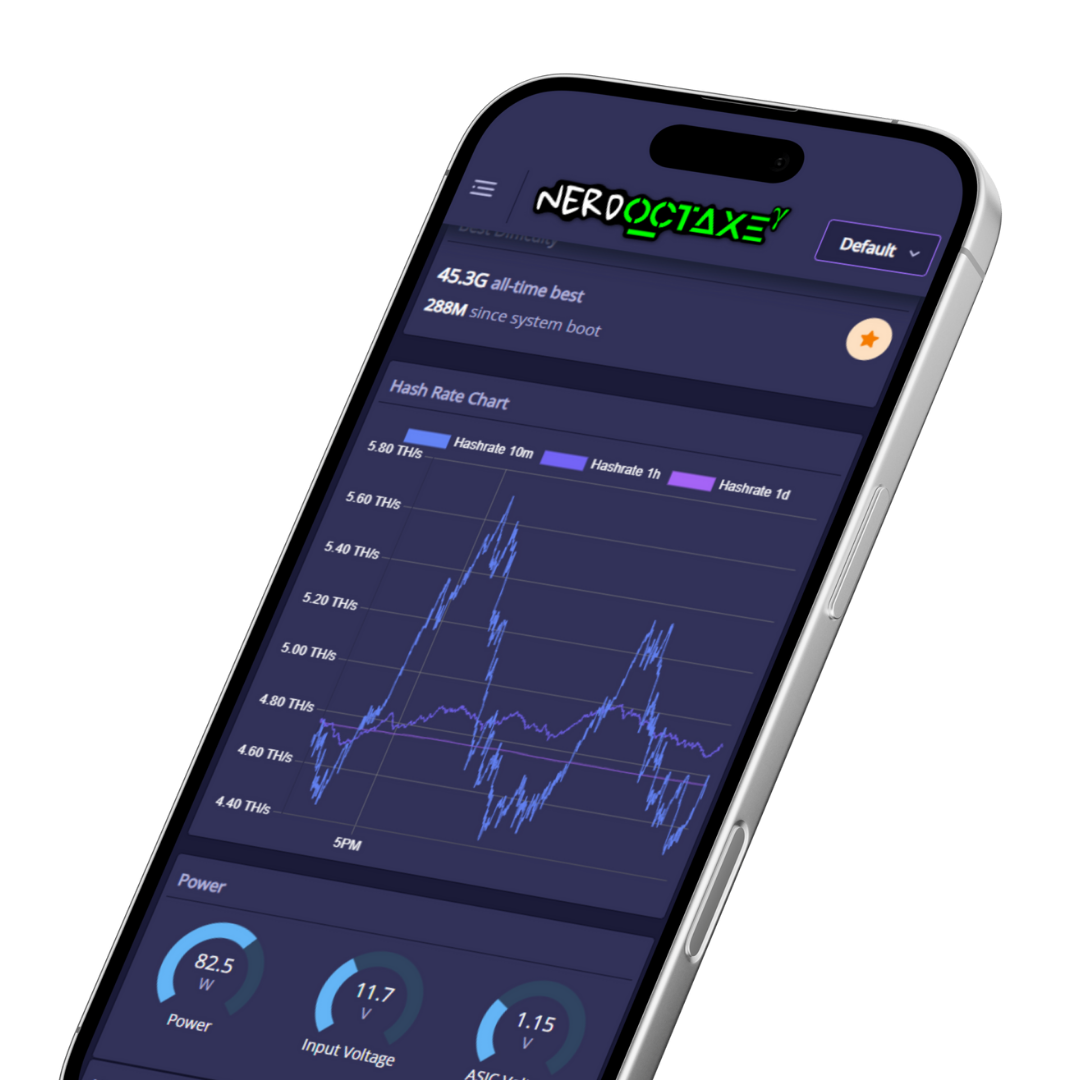

Just like the NerdAxe and NerdQaxe family, the NerdOctaxe features the LilyGo T-Display S3 full-color screen with a responsive graphical interface. It runs a dedicated ESP-Miner fork, adapted specifically for multi-chip miners, and integrates seamlessly with AxeOS offering an intuitive web dashboard for configuration, pool management, and complete real-time monitoring.

This open-source miner is the result of the collaborative work of the OSMU community and the broader open hardware ecosystem. The original design was created by @Pual91, and the Revision 3.1 enhancements, including the new 6-phase VRM, improved power delivery, cleaner routing, and updated component structure, were developed by @BitMaker_at Bitronics, continuing the tradition of innovation and community-driven progress in Bitcoin mining.

NerdOctaxe Gamma – 10 to 12Ths – BM1370 chip (S21+)
