Bitmain Martech 7000 RPM Fan — DF1203812B2FN 120 mm (S21, T21, KS5) / DF1403812B2FN 140 mm (S21 Pro, S21 XP, L11)
Regular price
€12,00
Unit price
per
Official Martech fans, the same ones Bitmain fits in the machines. Pick your reference above:
DF1203812B2FN — 120 × 120 × 38 mm, 12 V 4.5 A. For the Antminer S21, T21, S19j XP, S19k Pro, KS5, KS5 Pro and L9.
DF1403812B2FN — 140 × 140 × 38 mm, 12 V 5 A. For the Antminer S21 Pro, S21+, S21 XP and L11.
The two sizes are not interchangeable: a 120 mm fan does not fit an S21 Pro or an S21 XP, and a 140 mm one does not fit an S21 or a T21. If you are not sure, measure the frame of the fan you are replacing.
Both at 7000 RPM, with double ball bearings and a square 4-pin PWM connector. Sold per unit.
DF1203812B2FN — 120 × 120 × 38 mm, 12 V 4.5 A. For the Antminer S21, T21, S19j XP, S19k Pro, KS5, KS5 Pro and L9.
DF1403812B2FN — 140 × 140 × 38 mm, 12 V 5 A. For the Antminer S21 Pro, S21+, S21 XP and L11.
The two sizes are not interchangeable: a 120 mm fan does not fit an S21 Pro or an S21 XP, and a 140 mm one does not fit an S21 or a T21. If you are not sure, measure the frame of the fan you are replacing.
Both at 7000 RPM, with double ball bearings and a square 4-pin PWM connector. Sold per unit.
Item is in stock
Description
Official Martech fans used by Bitmain, the same ones fitted in the machines. Choose the reference that matches your miner: DF1203812B2FN (120 mm) or DF1403812B2FN (140 mm). Everything else is the same fan: 7000 RPM, double ball bearings and a square 4-pin connector with PWM speed control.

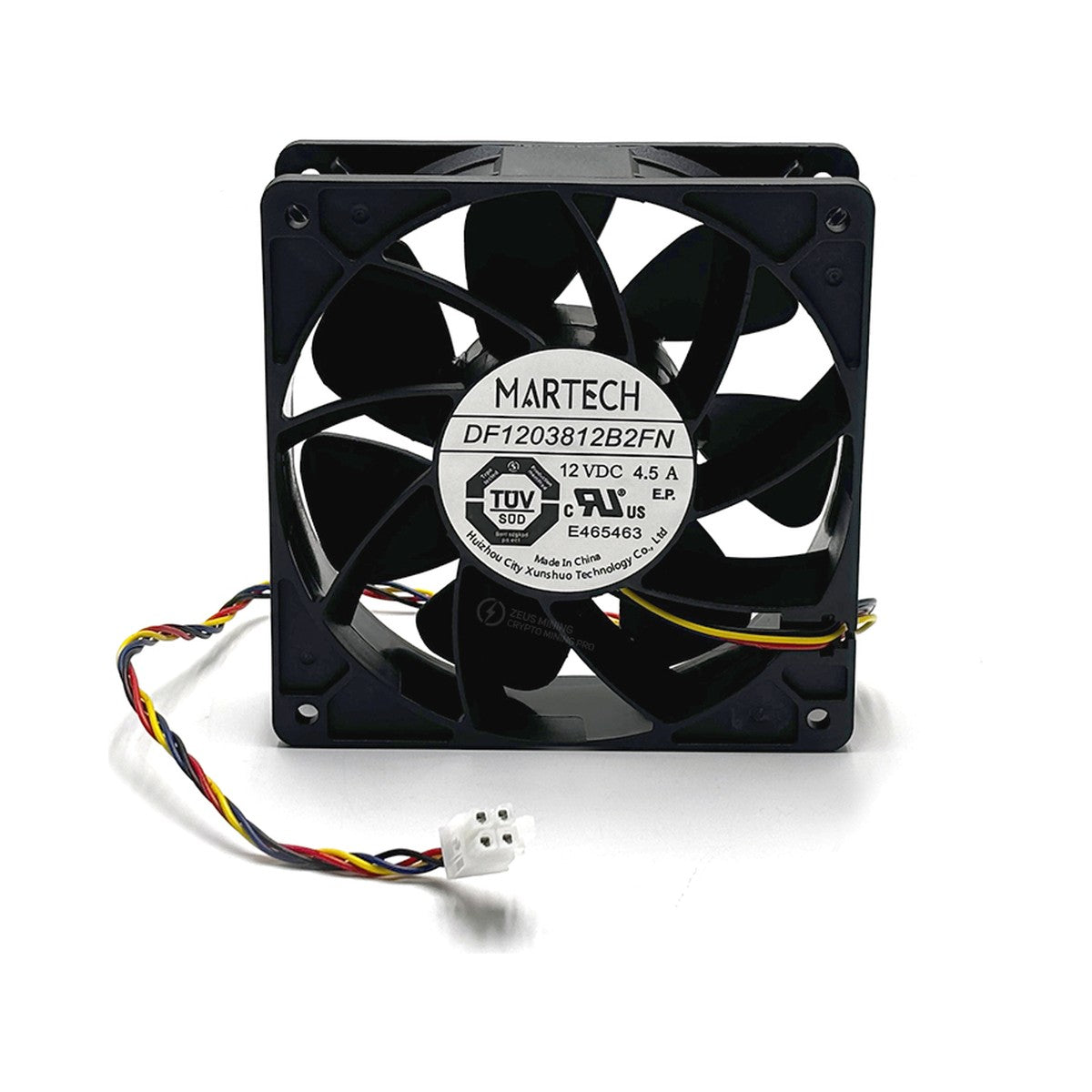

DF1203812B2FN — 120 × 120 × 38 mm
- Speed: 7000 RPM
- Power: 12 V DC, 4.5 A
- Fits: Antminer S21, T21, S19j XP, S19k Pro, KS5, KS5 Pro and L9
DF1403812B2FN — 140 × 140 × 38 mm
- Speed: 7000 RPM
- Power: 12 V DC, 5 A
- Fits: Antminer S21 Pro, S21+, S21 XP and L11
Not sure which one you need? Measure the frame of the fan you are replacing: 120 mm or 140 mm from screw to screw across the side.
Sold per unit. Your machine uses more than one fan, so order as many as you need to replace.
Specifications
Weight
0.4 kg
Reference
DF1203812B2FN,
DF1403812B2FN
